1.Metal bonded diamond pellets		2.Resin bonded diamond pellets
Pressure	300-500g/cm²?	Pressure	200-400g/cm²??????
Rpm	1000-2000rpm	Rpm	1000-2000rpm
Processing time	10-20sec	Processing time	15-25sec
Grinding depth	0.06-0.08mm	Grinding depth	0.01-0.015mm

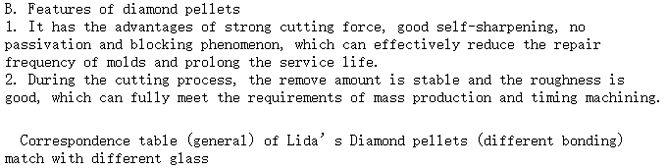

Glass	Abrasion resistance range	Typical glass type	Metal bonded		Resin bonded
Glass	Abrasion resistance range	Typical glass type	Major diameter	Minor diameter	Major diameter	Minor diameter
A	Under 80	S-LAH66,S-LAH55, S-LAH58,S-LAH60, S-LAH64,TAFD5, TAFD30,LAC8,TAC8	ZM24 ZM366	ZM24 ZM30 ZM20	ZR2	ZR2、ZR3
B	80-150	BSC7,BAC4,BACD, E-F,S-BSL7,S-BSM, S-BAL,S-BAH,S-TIM	ZM24 ZM366 ZM26	ZM24 ZM30 ZM20	ZR2、ZR3	ZR2、ZR3 ZR7、ZR707
C	150-260	S-TIH,S-LAM, E-FD1,FD60,FD110, E-FDS1,FDS90	ZM26 ZM24 ZM21 ZM22	ZM24 ZM10 ZM26 ZM20	ZR3、ZR707	ZR7 ZR707
D	Over 260	FCD1,PCD4, S-FPL,S-PHM	ZM21 ZM22	ZR7K1000#	ZR707	ZR707 ZR465
G	Diamond pellets used for planar surface				ZR717K1000#
H	Diamond pellets used for molds repair		ZM23Q1000# ZM51Q1000#

Remarks:
?? 1. Metal bonded diamond pellets normally used in first process, granularity should be selected according to the specific process, in general choose 1200# or 1500#.
?? 2. Resin bonded diamond pellets normally used in second process, granularity in general choose 1500#,1800# or 2000#.
?? 3. Even the different type glass with same abrasion resistance, their feature will be various in cold processing, please contact our technicians for advice before you choose our diamond pellets.

C. Diamond pellets type in common

No	Parts No.	Abrasion resistance range	Features	Usage
1	ZR2S	65-130	Strong cutting force	Resin bonded, second process
2	ZR3S	70-150	Good surface shape, suitable for large-diameter lenses	Resin bonded, second process
3	ZR7S,K	100-180	Good surface shape and surface accuracy	Resin bonded, second process
4	ZR707S	130-220	Strong cutting force, suitable for soft material	Resin bonded, second process
5	ZRT30S	70-200	Good cutting force, suitable for large-diameter lenses	Resin bonded, second process
6	ZR465S	240-410	Specialized for super-soft material	Resin bonded, second process
7	ZR612	400以上	Specialized for super-soft material	Resin bonded, second process
8	ZM10H	80-150	Suitable for fluorine-containing material	Metal bonded, first process
9	ZM20H	80-180	Good abrasion resistance	Metal bonded, first process
10	ZM21S	150-410	Suitable for soft material	Metal bonded, first process
11	ZM22H	100-300	Strong cutting force, suitable for soft material	Metal bonded, first process
12	ZM24H	70-150	General usage, hard material	Metal bonded, first process
13	ZM26H	160-320	Good stability, soft material	Metal bonded, first process
14	ZM28H	70-150	Good abrasion resistance, medium hard material	Metal bonded, first process
15	ZM30H	70-150	Good abrasion resistance, medium hard material	Metal bonded, first process

?
